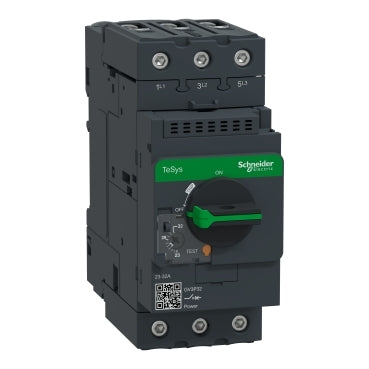

TeSys GV3 Motor Circuitbreaker 23-32A 690V - GV3P32
Three-phase motor circuit breaker with thermal-magnetic protection for 15kW@400V applications. Features adjustable thermal range of 23-32A, magnetic trip at 14xIn, and high breaking capacity of 100kA@400V. Includes Everlink BTR screw terminals, 50,000 cycle rotary handle operation, and IP20 protection. Certified to multiple standards including IEC, UL, CSA, and ATEX. Operating temperature range: -20°C to +60°C.
- Normale prijs
- €186,67
- Normale prijs
- €154,27
Beschrijving
Three-phase motor circuit breaker with thermal-magnetic protection for 15kW@400V applications. Features adjustable thermal range of 23-32A, magnetic trip at 14xIn, and high breaking capacity of 100kA@400V. Includes Everlink BTR screw terminals, 50,000 cycle rotary handle operation, and IP20 protection. Certified to multiple standards including IEC, UL, CSA, and ATEX. Operating temperature range: -20°C to +60°C.
Pros:
- High breaking capacity of 100kA at 400V
- 50,000 cycle operational lifespan
- Multi-standard certification for global use
- Wide operating temperature range
