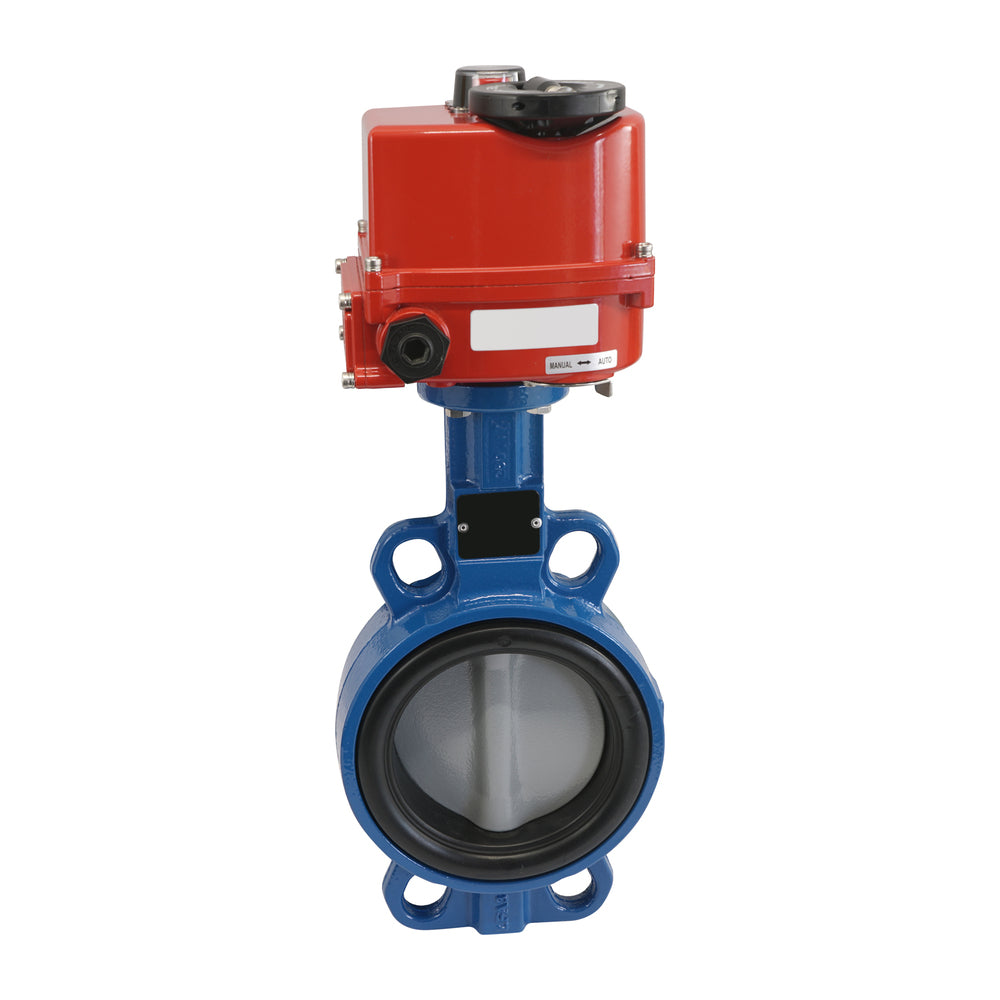

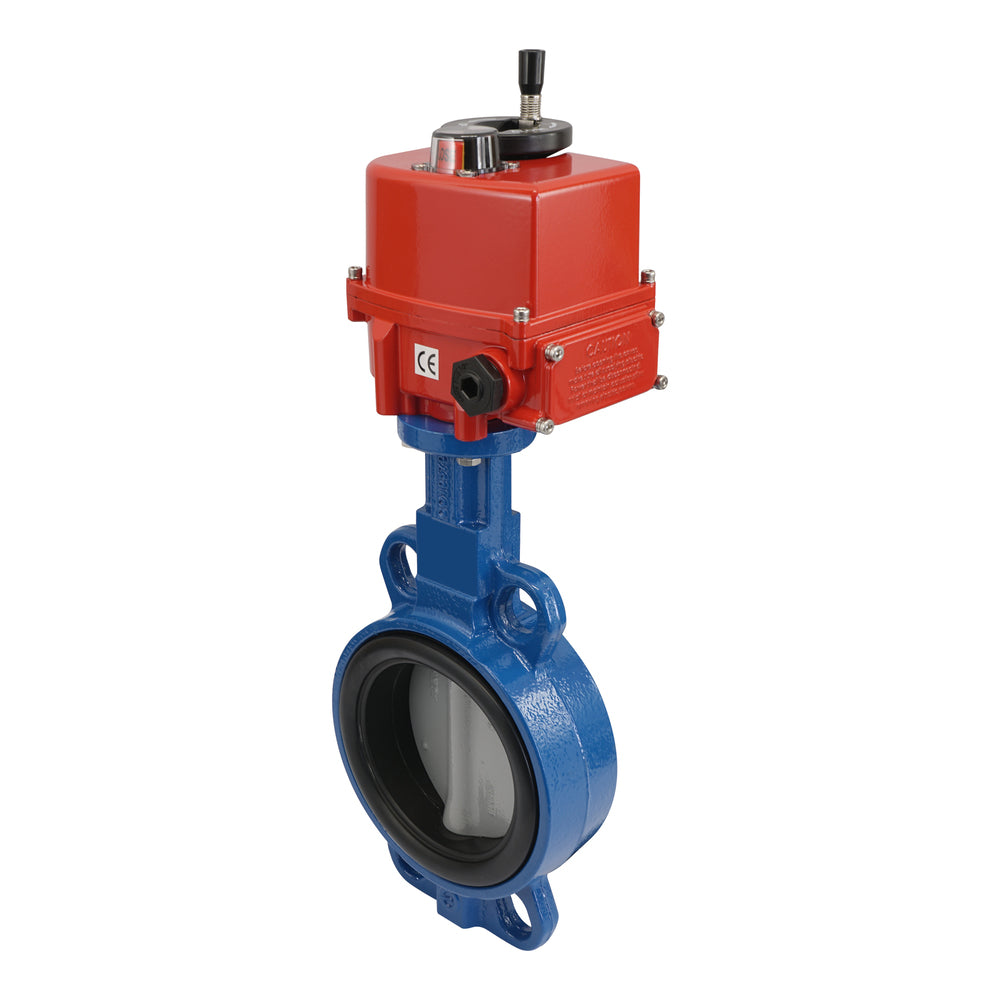

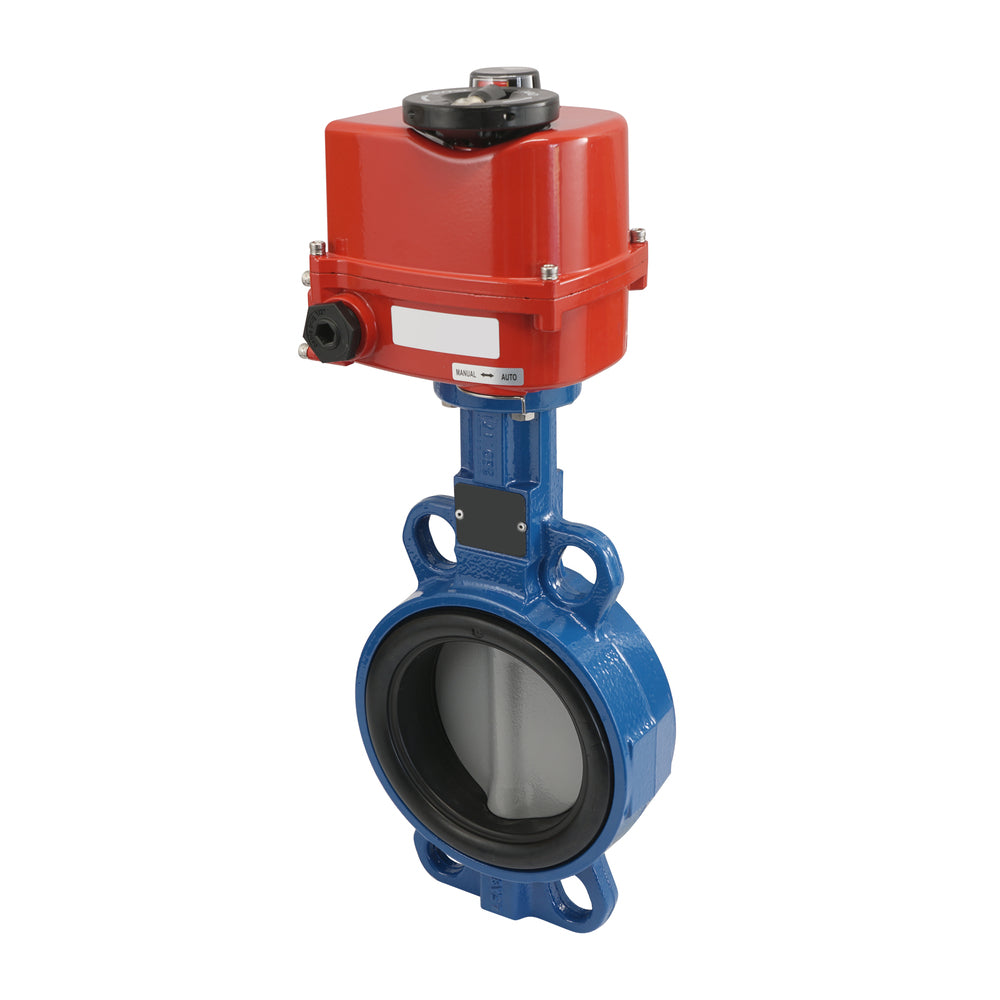

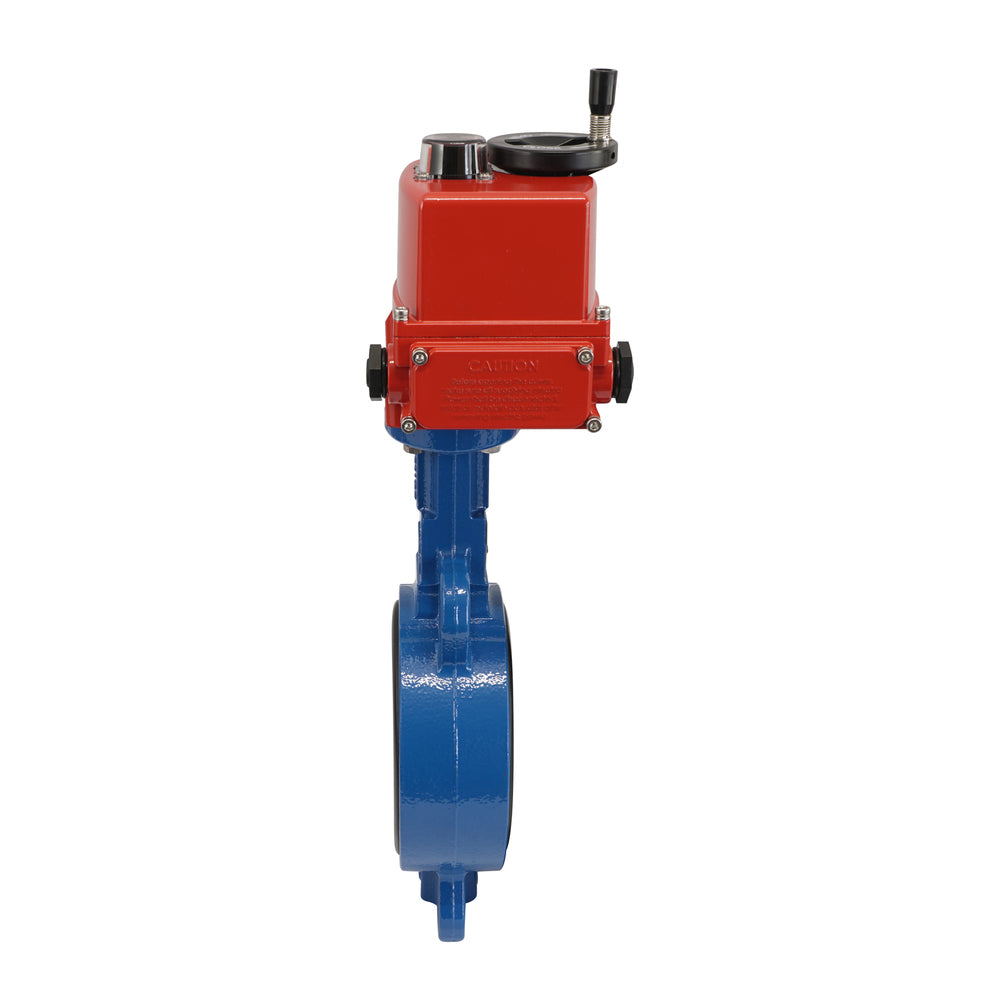

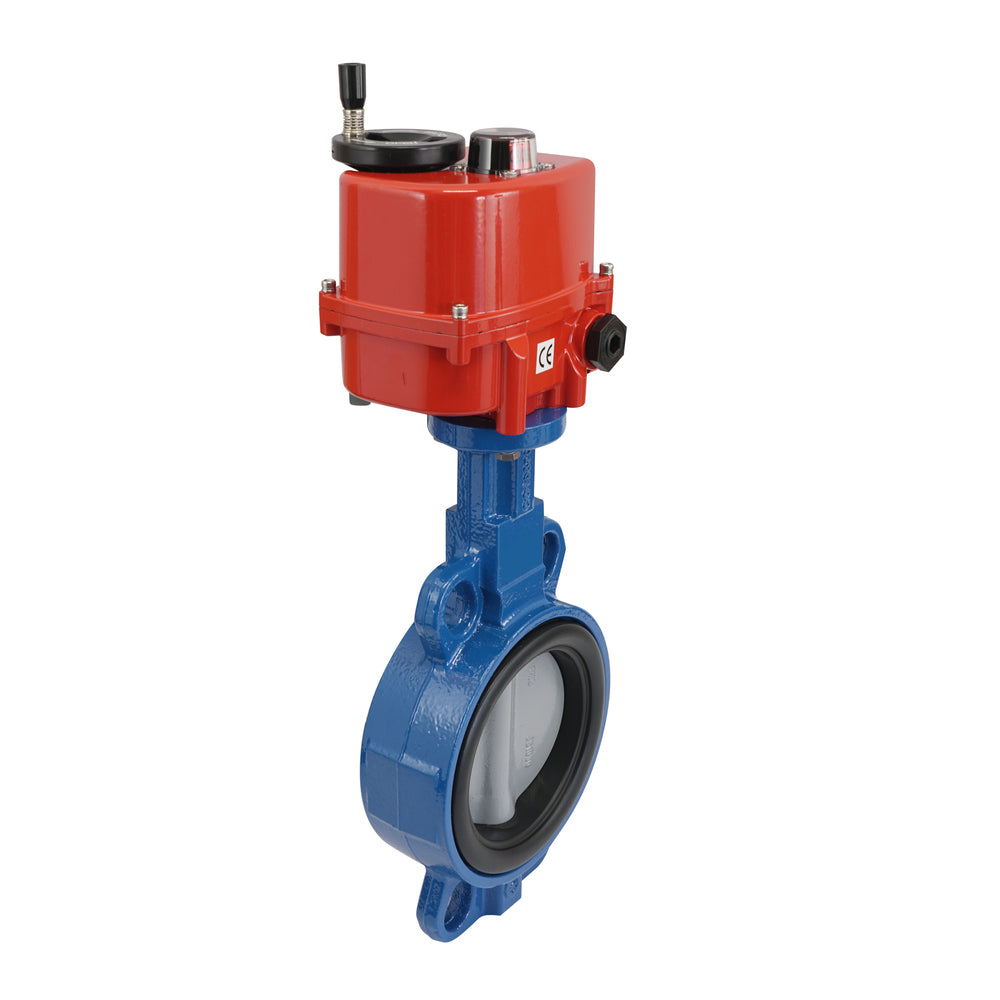

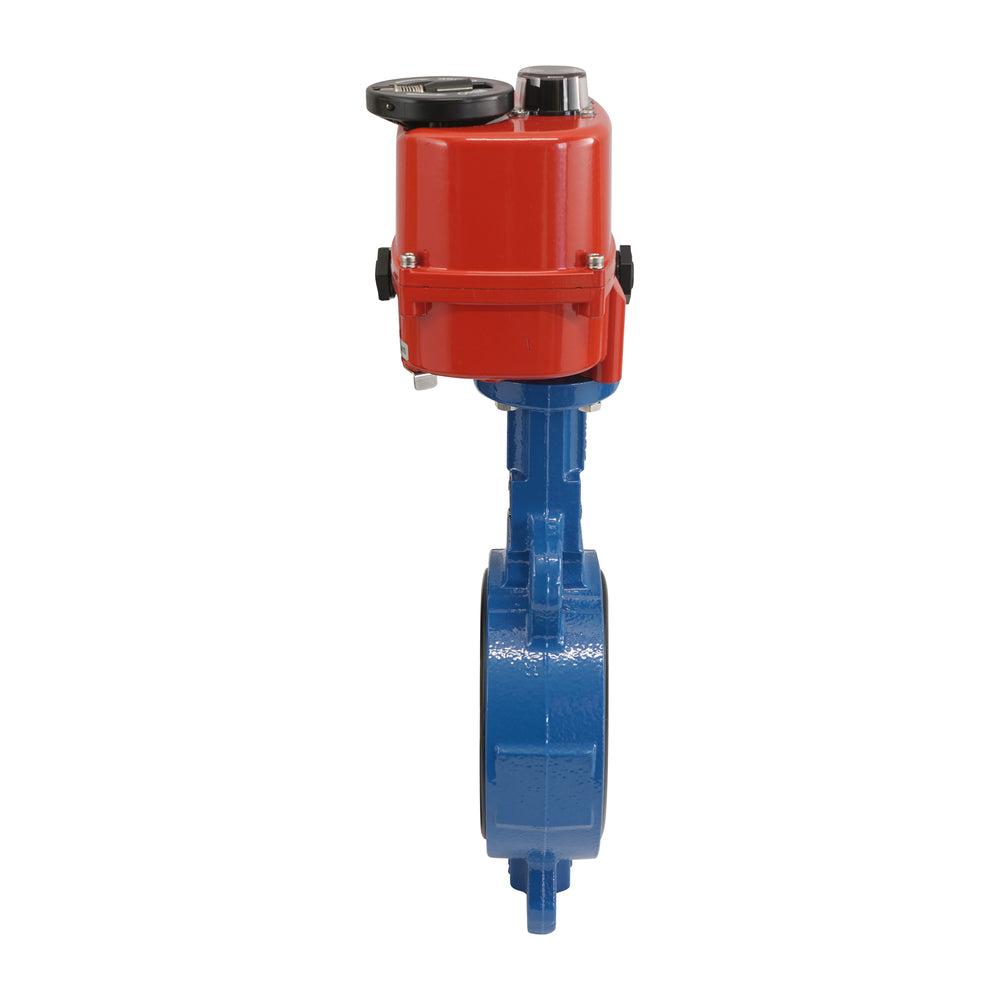

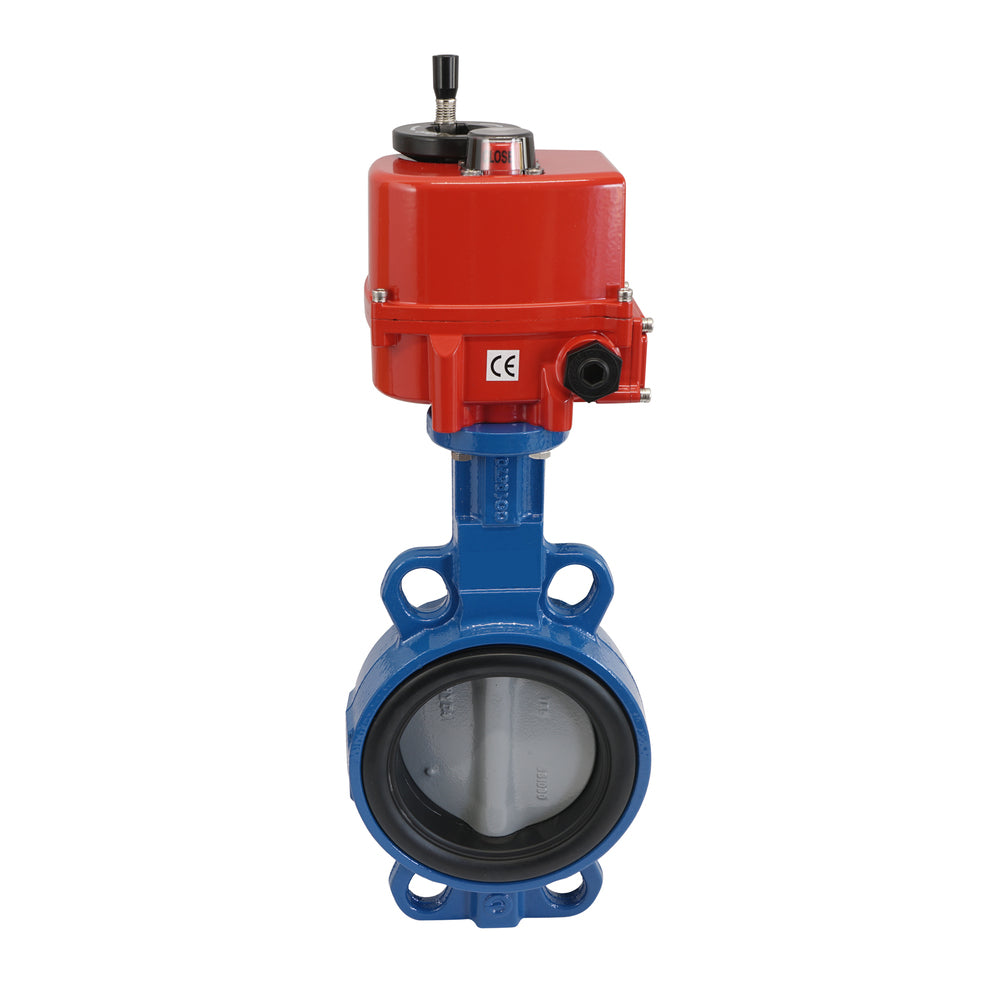

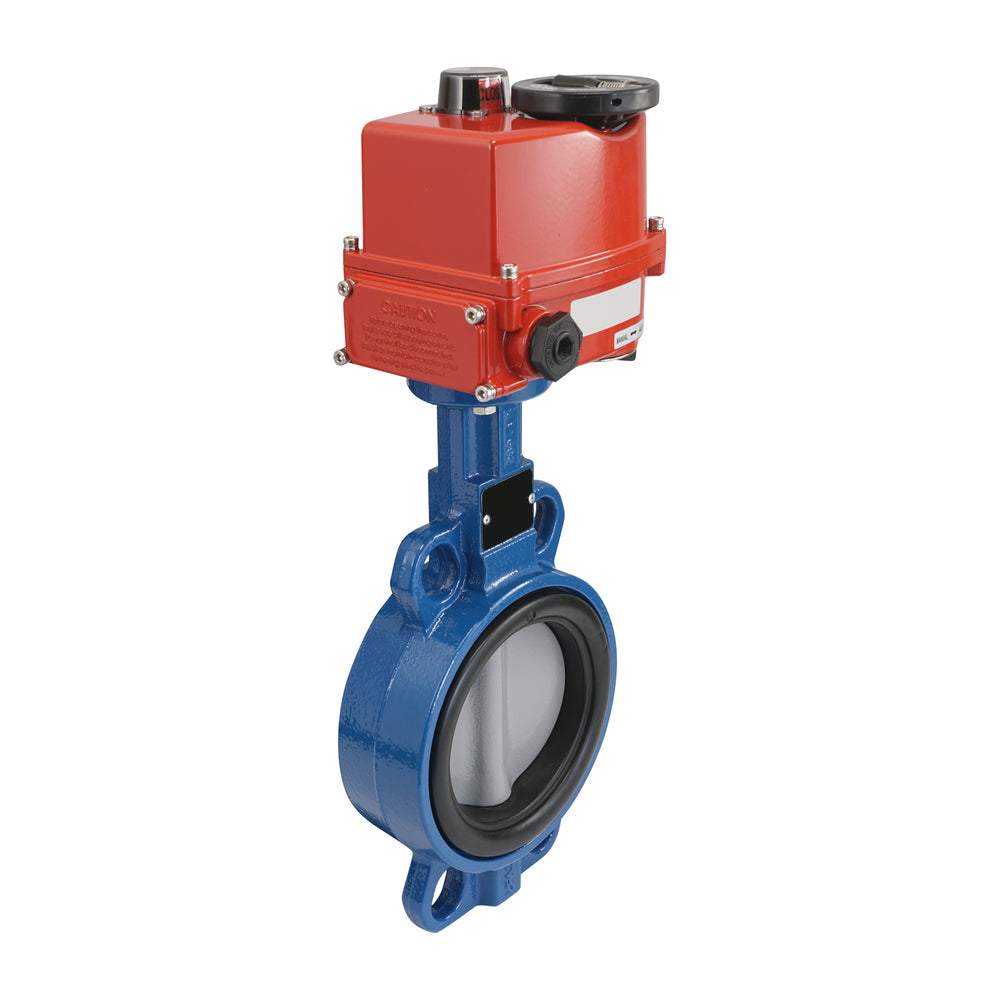

Electric Butterfly Valve DN80 24V AC/DC Lug GGG40 NBR AG5
This electrical actuator is offered in combination with a cast iron butterfly valve. Actuator requires 24 V AC/DC to operate. The butterfly valve has a nominal diameter of 80 mm, suitable for media temperatures between 5 and 85 °C (41 and 185 °F), and max pressure of 12 bar (174.0 psi). Easily connected to your piping with a lug type flange. The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -10 to 50 °C (14 and 122 °F).
- Normale prijs
- €616.69
- Normale prijs
- €509.66
Beschrijving
This electrical actuator is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 13 seconds. It requires a supply voltage of 24 V AC/DC has a duty cycle of S2, and comes with a visual positioning indicator on top of the unit to clearly see valve position. The butterfly valve has a lug type flange for connecting it to the piping, a nominal diameter of DN 80, and is rated up to 12 bar (174.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, stainless steel disc and an NBR seal. It is suitable for media temperatures between 5 and 85 °C (41 and 185 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -10 to 50 °C (14 and 122 °F).
Pros:
- No risk of water hammer due to slow closing (13 s)
- The components are interchangeable and can be replaced individually if needed
- High Kv-value because the fluid flows in a straight line
